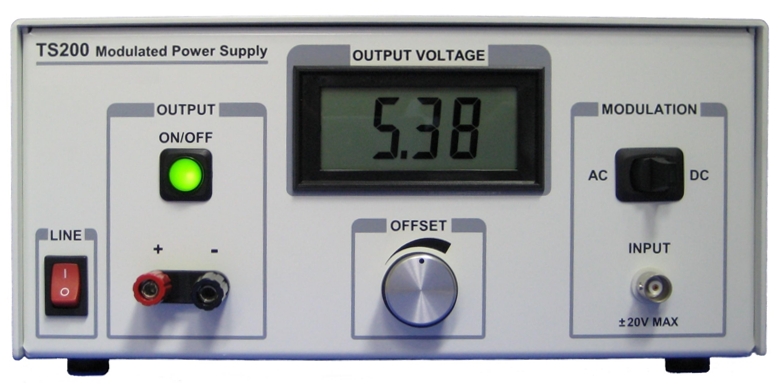

Modulated power supply used as ultrasonic amplifier driver. TS250 Waveform Amplifier is ideal for high-frequency ultrasonic amplifier.

Ultrasonic Amplifier

Ultrasonic amplifier is a lab equipment that amplifies voltage signal at high frequencies. Unlike audio frequencies which are between 20Hz and 20kHz, ultrasonic-frequency are greater than 20kHz and into the hundreds kilo-Hertz and even MHz. Common ultrasonic amplifier applications are piezo transducer and sensor. Ultrasound sensors and transducers are generally capacitive. At high frequencies, these transducers impedance are low. They requires high-current amplifier to drive these transducers at these supersonic frequencies.

In addition to high current, piezo ultrasonic transducers require high voltage. Their required voltage is usually greater than 10V and up to 100V or higher. Most signal sources such as those function generator are less than 5V, but ultrasonic devices need higher voltage. Therefore a high-voltage ultrasonic power amplifier is needed. For example, a piezoelectric speaker needs an 50Vpp sine-wave, but a signal generator output is 5V maximum. Using the TS250 to amplify the signal source and it outputs high voltage and high current ultrasonic waveform that drives the piezo speaker. In summary the TS250 is an ideal ultrasonic amplifier driver.

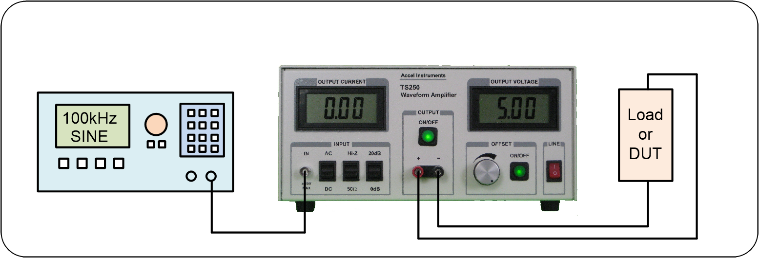

Figure 1. High-frequency signal from a waveform generator is amplified to drive a transducer.

Ultrasonic Transducer Amplifier Connection

Ultrasonic amplifier is connected to a waveform generator to produce high voltage for the piezo transducer.

Waveform Generator

Figure 2 and Figure 3 show examples of high-frequency waveform from the TS250 and TS200 ultrasonic amplifier. They can produce up to 80Vpp high-voltage waveform for driving ultrasound components.

Ultrasonic Amplifier Voltage Waveform Examples

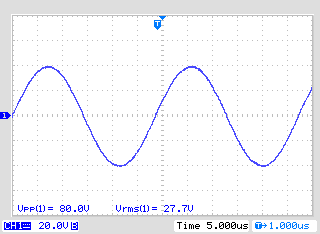

Figure 2. TS250-3 generates 80Vpp 35kHz ultrasound sinewave into 15 ohm load which is +/-2.7A current

Ultrasonic Transducer Amplifier Waveform Example Ultrasonic Power Amplifier Waveform Example

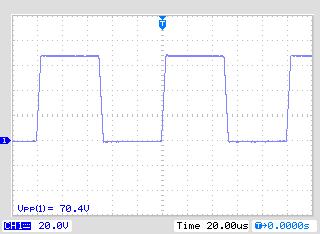

Figure 3. TS200-3B drives 70Vpp square-wave into a 220pF load.

Table 1. High-Voltage Ultrasonic Amp Selection Guide

Selecting An Ultrasonic Power Amplifier

The TS200 and TS250 are high-current amplifier and high-voltage ultrasonic amplifiers. Unlike other ultrasonic piezo amplifiers available today, the TS200 and TS250 are able to output very high current at supersonic frequencies. Table 1 below shows the amplifier output current and voltage range.

The TS250-0 can drive 6A peak current into a piezoelectric device as a load. If the high-frequency device requires higher current, two or more TS250 can be connected in parallel as shown in Figure 4. Contact factory for details on higher output current.

Two or more ultrasonic transducer amplifiers can be connected in parallel using isolation resistors.

Figure 4. Parallel two TS250 ultrasonic transducer amplifiers doubles the output current.

High-Voltage Function Generator Amplifier

Current-Gain Amplifier

Ultrasonic Piezo Driver

Quick Start Guide - Function Generator Amplfier

Visit TS200 Product Page

TS250 vs. TS200

Visit TS250 Product Page

Ask Us Questions

Request a Quote

Quick Links

Related Technical Information

Further read on ultrasound amplifer design.

Increase Ultrasonic Driver Output Current

While the TS250 and the TS200 are designed to output high current in the range of 1.4A to 6A (See selection guide for output current and voltage). Higher current are often required for some experiments and testing applications. To obtain higher current, two or more TS200/TS250 ultrasonic power amplifiers may be connected in parallel as shown in Figure 4. Their total current is proportional to how many units connected in parallel. When connect ultrasonic transducer amplifiers in parallel, a small resistor in series is needed to isolated the driver amps from one other. It is recommended to use 0.3Ω to 1.0Ω series resistance. Use larger resistance for higher output voltage. Due to high current, the isolation resistors must be able handle the power dissipation.

Plot shows a typical TS250 ultrasonic driver amplifier output voltage vs frequency.

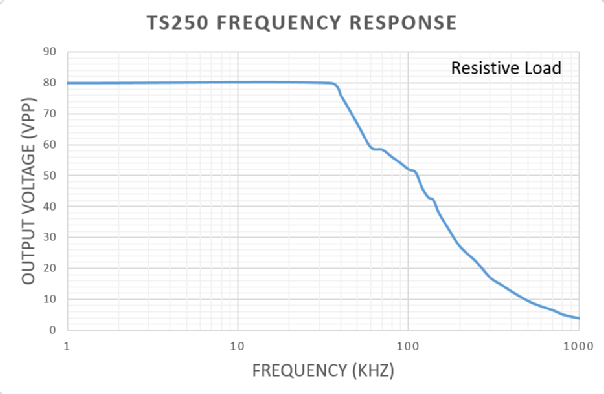

Figure 5. TS250 ultrasonic driver amplifier frequency response.
